General / Physical
| Spec | Detail |
|---|---|
| Dimensions (camera) | 57.3 × 29.5 × 28 mm |
| Dimensions (dock) | 59.1 × 42.2 × 22.3 mm |
| Weight (camera only) | 52 g |
| Weight (with dock) | 124 g (approx.) |
| Waterproofing | Camera: waterproof up to 10 m With dock: splash-proof (IPX4) |

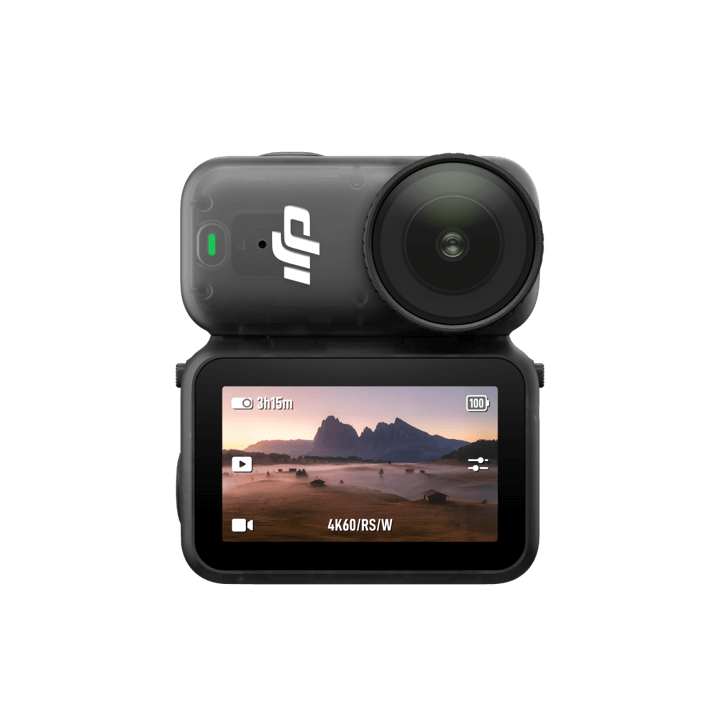

| Display | 1.96″ touchscreen, 314×556 px, ~800 nits brightness |
| Microphones | Dual built-in microphones |
| Feature | Details |
|---|---|
| Sensor | 1/1.3″ CMOS |
| Field of View | 143° ultra-wide |
| Aperture | f/2.8 |
| Focus Range | 0.35 m to ∞ |
| ISO Range | 100 to 25,600 |
| Shutter Speed | 1/8000 s to 30 s |
| Max Photo Resolution | 6880 × 5160 (≈ 35 MP) |
| Video Resolutions | - 4K (4:3) @ 30fps - 4K (16:9) @ 60fps - 2.7K & 1080p @ up to 120fps |
| Slow Motion | 4× @ 4K, 8× @ 1080p |
| Stabilization | RockSteady 3.0 & HorizonBalancing (limited to some modes) |
| Max Bitrate | 120 Mbps |
| Photo Format | JPEG / RAW |
| Video Format | MP4 (H.265/HEVC) |
| Audio | 48 kHz, 16-bit, AAC |
| Feature | Detail |
|---|---|
| Internal Storage | 64 GB total, 48 GB usable |
| Expandable Storage | microSD card up to 1 TB (U3 / V30 / A2 recommended) |
| Feature | Detail |
|---|---|
| Camera Battery | 530 mAh, Li-ion |
| Dock Battery | 1300 mAh, Li-ion |
| Runtime (camera only) | Up to 90 minutes (1080p/24fps, no Wi-Fi) |
| Runtime (camera + dock) | Up to 200 minutes |
| Fast Recording Endurance | Over 50 mins at 4K/60fps (no Wi-Fi) |
| Operating Temp | –20 °C to 45 °C |
| Charging Temp | 5 °C to 40 °C |
| Feature | Details |
|---|---|
| Wi-Fi | Dual-band (2.4 GHz / 5.8 GHz), Wi-Fi 6 |
| Bluetooth | BLE 5.1 (camera), BLE 5.4 (dock) |
| Transmission Range | Approx. 10 m (camera ↔ dock) |
Stabilization Limitations: HorizonBalancing available only in 1080p, 2.7K, or 4K (16:9) modes at ≤ 60fps
Pre-Recording Options: 5 / 10 / 15 / 30 seconds and 1 / 2 / 5 minutes
Mounting & Accessories: Compatible with DJI magnetic mounting ecosystem
Usage Advice: Avoid using underwater with dock attached; camera alone supports diving up to 10 m
