Product Parameter

1. Modulation System GFSK

2.Efective Operation Distance: Within 10m

3.Operating Voltage :3-5V

4.Operating Current: ≤2.5MA

5. Standby Current: ≤0.3mA

6. Sleeping Current: ≤0.1mA

7.Charging Current: ≥200MA

8. Standby Time: ≥60days/200days(backlighting)

9. Charging Time :2-3hs

10. Lithium Battery Capacity: 180mA/400mA (backlighting)

11. Uninterrupted Working Time: 150H (without backlight/3H/ with backlight)

12. Lithium Battery Life :2-3years

13. Key Strength :80+10g

14. Key Life :5 million strokes

15.Operating Temperature: -10+55°C

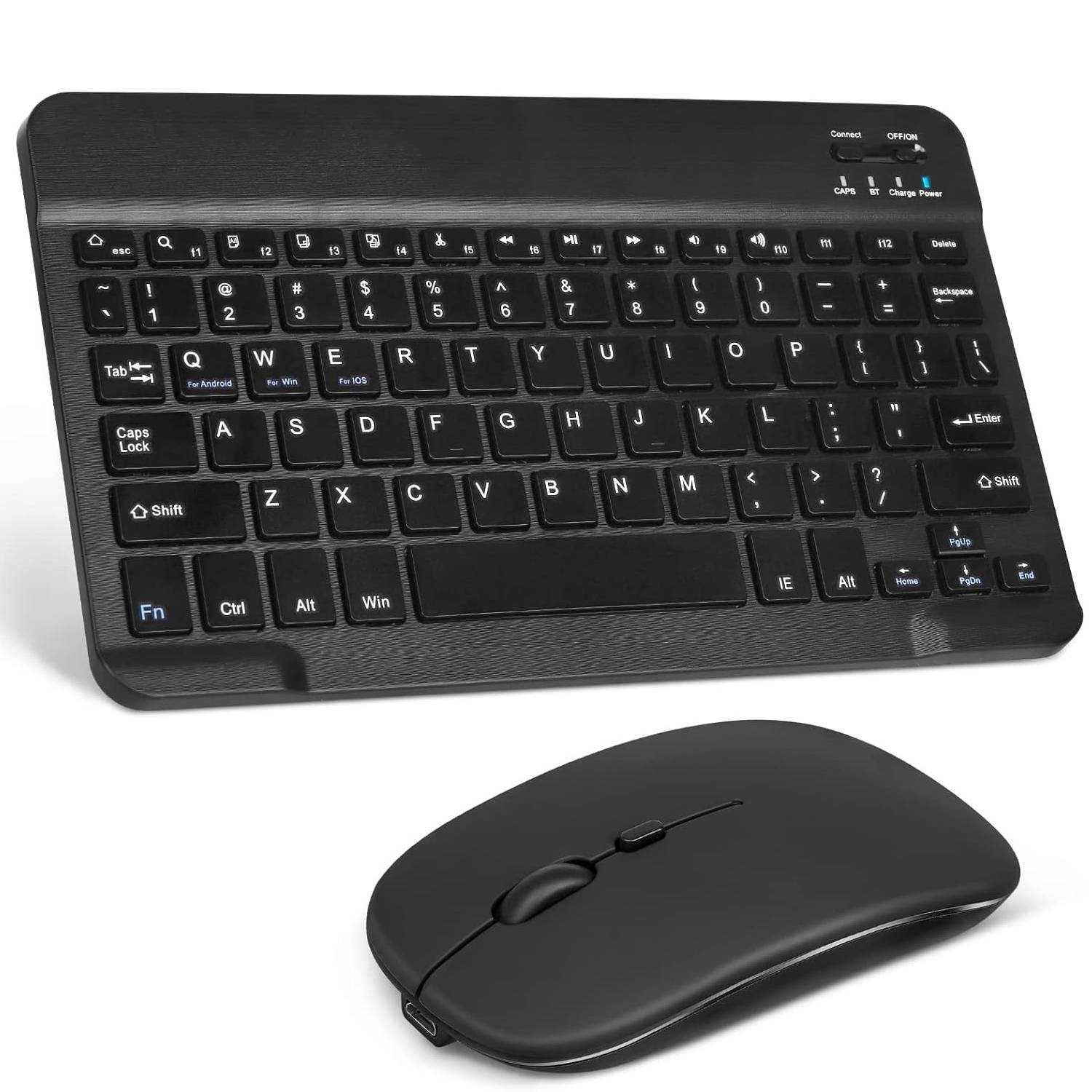

Getting started guide

1.Keys

Power key: slide the switch to ON or OFF to switch on or of the device power.

Connecting key: with power key being turned on, press connecting key to make the keyboard begin to be prepared for Bluetooth connection.

2.Indicator

Power indicator, which is ON for 4s when the power key is turned on, then becomes OFF.

Indicator for Bluetooth connection, which flashes when connecting key is pressed, and becomes OFF when the keyboard is connected to your device.

Caps lock indicator, which is ON when the keyboard is connected to your device.

Caps lock indicator, which becomes ON when the USB cable is used to charge the keyboard.
