Overview

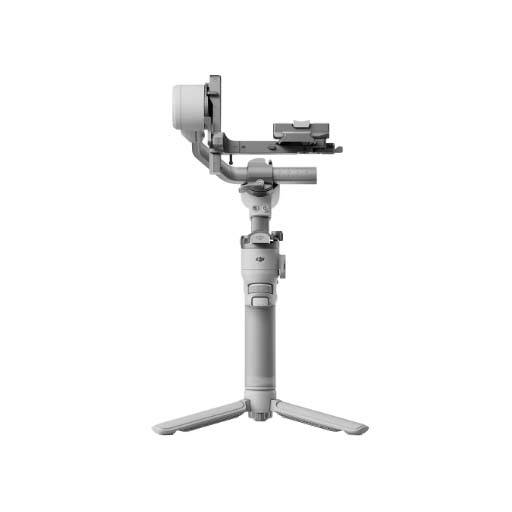

The DJI RS 4 Mini is a compact and lightweight stabilizer, weighing 890g and supporting up to 2kg of payload. It features automated axis locks, Teflon™ balancing, and native vertical shooting for seamless transitions. With up to 13 hours of battery life, it supports fast charging (5 hours of use in 30 minutes). The stabilizer also offers intelligent tracking, responsive follow mode, and compatibility with various accessories, making it ideal for content creators and videographers.
Product Specifications:
- Gimbal Weight: Approximately 890 g (2 lbs)
- Maximum Payload: 2 kg (4.4 lbs)
- Battery Type: LiPo 2S
- Battery Capacity: 3100 mAh
- Energy: 22.32 Wh
- Maximum Runtime: Up to 13 hours (stationary)
- Charging Specification: 9 V/2.5 A
- Charging Time: Approximately 1 hour and 50 minutes
- Suggested Charging Temperature: 5° to 40° C (41° to 104° F)
- Accessory Ports:
- NATO Port
- 1/4"-20 Mounting Hole
- RSS Camera Control Port (USB-C)
- Pogo Pin (compatible with the DJI RS Intelligent Tracking Module)
- Dimensions:
- Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
- Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
- Compatible Phone Weight: 117 g
- Compatible Phone Thickness: 0.3 to 0.4" (6.9 to 10 mm)
- Compatible Phone Width: 2.6 to 3.3" (67 to 84 mm)
- Battery Type: LiPo (Lithium Polymer)
- Battery Capacity: 3350 mAh / 12.06 Wh
- Battery Voltage: 7.4 V
- Charging Temperature: 5°C to 40°C (41°F to 104°F)
- Operating Temperature Range: 5°C to 40°C (41°F to 104°F)
- Operating Time: Up to 10 hours
- CHARGING TIME: 2.5 hours
- Gimbal Charging Port: USB-C
- External Device Charging Port: USB-C
- Gimbal Consumption: 6.5 W
- Gimbal Mechanical Range: Yaw (Pan): 331° (-109° to 222°) Roll: 332° (-77° to 255°) Pitch (Tilt): 324° (-224° to 100°)
- Gimbal Max Control Speed: 120°/s
- Tripod: Yes (Built-in tripod and 1/4"-20 mounting thread for additional accessories)
